JCA601 GPS Active Antenna with 28dB Gain Amplifier
JCA601 is a GPS Active Antenna with built in 28 dB gain amplifier, 2.2 - 5.0 work voltage, screw mount, designed for mobile GPS Navigators and GPS Trackers etc. You can choose different connector types and cable length.
Specifications
-
Dieletric Antenna
- Center Frequency: 1575.42MHz±1MHz
- V.S.W.R < 1.5
- Band Width: CF±5 MHz
- Impendence: 50 ohm
- Gain 5dBic<zenith)< li="">
- Axial Ratio 3dB (max)
- Polarization: RHCP
- Dimension 69x35mm
-
LNA/Filter
- LNA Gain 28dB±2dB
- Noise Figure < 1.5
- Filter Insertion Loss < 3dB
- Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
- V.S.W.R < 2.0
- Supply DC Voltage 2.2V to 5.0V
- Current Consumption < 5 to 15mA
-
Mechanical
- Cable: RG174 or others
- Connector SMA/MCX/FAKRA or your specification
- Radome Material ABS
- Mounting: Scew
- Housing color: Black
-
Environmental
- Operating Temp: -40oC~+85oC
- Storage Temp: -45oC~+100oC
- Vibration 10 to 55Hz with 1.5mm amplitude 2hours
- Relative Humidity up to 95%
- Ingress Protection IP65 ~ IP67
- Environmentally Friendly ROHS Compliant

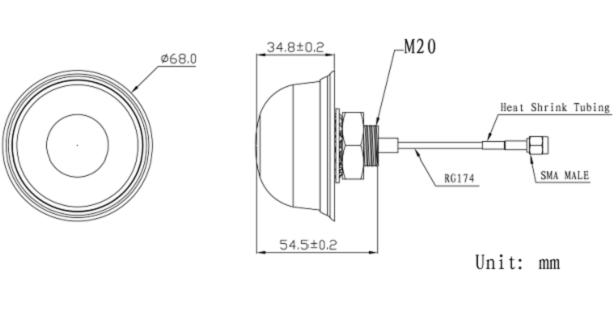

Dimension
For GPS system developers, we recommend to order and test few samples first before placing a quantity order. The listed price is the sample price.
All customized items are not returnable for refund if the products function as the specifications.
