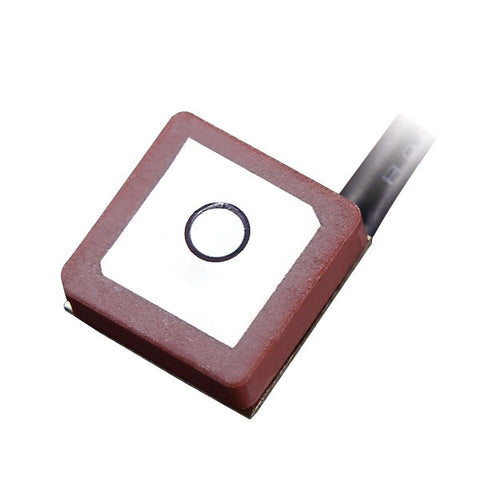

JCN055 mini GPS Active Antenna Module with a 22dB LNA

JCN055 mini GPS Active Antenna Module with a 22dB LNA

Mobile GPS Online

  • $11.98
  • Save $1


JCN055 is a mini high gain, low noise and low power GPS active antenna module for GPS system developers or integrator.

Specifications

  • Dielectric Antenna
    • Center Frequency: 1575.42MHz±3MHz
    • V.S.W.R < 1.5
    • Band Width: CF±5 MHz
    • Impedance: 50 ohm
    • Gain 5 dBic
    • Axial Ratio 3 dB (max)
    • Polarization: RHCP
    • Dimension 13x13x3.5mm
  • LNA/Filter
    • LNA Gain 22dB±2dB
    • Noise Figure < 1.5
    • Ex-band Attenuation 30dB@CF+/-40MHz
    • V.S.W.R < 2.0
    • Supply DC Voltage 3.3V DC
    • Current Consumption < 9mA
  • Mechanical
    • Cable: RG1.13 or other
    • Connector IPEX or others
  • Environmental
    • Operating Temp: -40oC~+85oC
    • Vibration 10 to 55Hz with 1.5mm amplitude 2hours
    • Relative Humidity up to 75%
    • Environmentally Friendly ROHS Compliant

For GPS system developers, we recommend to order and test a few samples first before placing a quantity order. The listed price is the sample price.

All customized items are not returnable for refund if the products function as the specifications.
