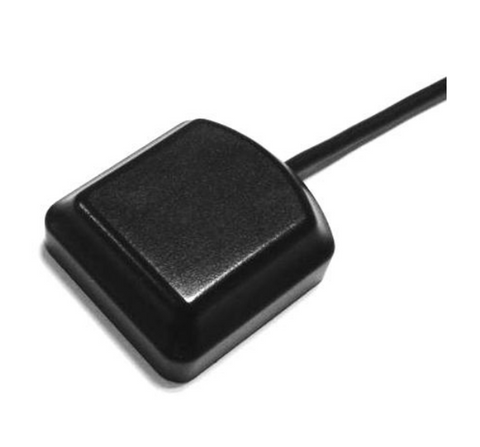

JCA201 Mini GPS Active Antenna

JCA201 is a Mini GPS Active Antenna designed for miniature.

For your choice, determine that your GPS receiver uses an active antenna first, then check what connector type matches your receiver and finally determine your mounting option and cable length.

Specifications

• Dieletric Antenna
  • Center Frequency: 1575.42MHz±3MHz
  • V.S.W.R < 1.5
  • Band Width: CF±5 MHz
  • Impendence: 50 ohm
  • Gain 2dBic
  • Axial Ratio 3dB (max)
  • Polarization: RHCP
  • Dimension 20*20*4mm
• LNA/Filter
  • LNA Gain 28dB±2dB
  • Noise Figure < 2.0
  • Filter Insertion Loss < 3dB
  • Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
  • V.S.W.R < 2.0
  • Supply DC Voltage 2.2V to 5.0V
  • Current Consumption < 25mA
• Mechanical
  • Cable: RG174
  • Connector SMA/MCX/FAKRA or your specification
  • Radome Material ABS
  • Mounting: Magnet/Adhesive
  • Housing color: Black
• Environmental
  • Operating Temp: -40^oC~+85^oC
  • Storage Temp: -45^oC~+100^oC
  • Vibration 10 to 55Hz with 1.5mm amplitude 2hours
  • Relative Humidity up to 95%
  • Ingress Protection IP65 ~ IP67
  • Environmentally Friendly ROHS Compliant
