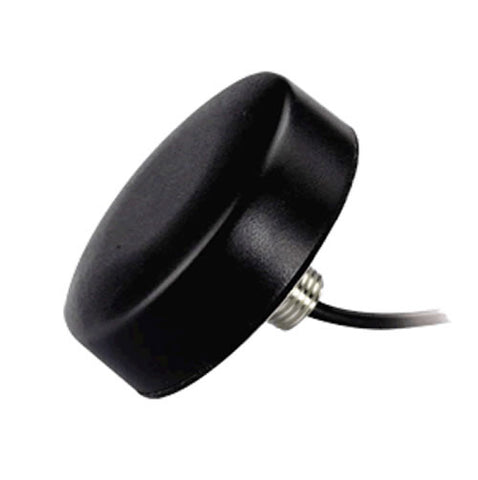

JCA003 Screw Mount GPS Active Antenna

JCA003 Screw Mount GPS Active Antenna

Mobile GPS Online

  • $15.98


JCA003 is a GPS Active Antenna with built in 28 dB gain amplifier, 2.2 - 5.0 work voltage, screw mount, designed for mobile GPS Navigators and GPS Trackers etc. You can choose different connector types and cable length.

Specifications

  • Dielectric Antenna
    • Center Frequency: 1575.42 MHz±1 MHz
    • V.S.W.R < 1.5
    • Band Width: CF±5 MHz
    • Impendence: 50 ohm
    • Gain: 5dBic<zenith)
    • Axial Ratio 3dB (max)
    • Polarization: RHCP
    • Dimension 46x15mm
  • LNA/Filter
    • LNA Gain 28dB±2 dB
    • Noise Figure < 1.5
    • Filter Insertion Loss < 3 dB
    • Ex-band Attenuation 12 dB@CF+50 MHz/16 dB@CF-50 MHz
    • V.S.W.R < 2.0
    • Supply DC Voltage 2.2 V to 5.0 V
    • Current Consumption < 5 to 15 mA
  • Mechanical
    • Cable: RG174
    • Connector SMA/MCX/FAKRA or your specification
    • Radome Material ABS
    • Mounting: screw
    • Housing color: Black
  • Environmental
    • Operating Temp: -40oC~+85oC
    • Storage Temp: -45oC~+100oC
    • Vibration 10 to 55 Hz with 1.5 mm amplitude 2 hours
    • Relative Humidity up to 95%
    • Ingress Protection IP67
    • Environmentally Friendly ROHS Compliant

Dimension

For GPS system developers, we recommend to order and test few samples first before placing a quantity order. The listed price is the sample price.

All customized items are not returnable for refund if the products function as the specifications.
