EEH-L01 LTE Antenna
EEH-L01 is a low profile design 4G cellular antenna, designed for the applications that require 4G application. The antenna can be also fallback to support 2G&3G applications.
Features
- Low profile structure design
- Permanent mounting and detachable design
- IPX7 fully waterproof
- Support LTE 4G,3G & 2G applications
- Variety cable options to enhance the communication performance at different installation fields.
Applications
- Data communication & transforming
- Wireless monitoring
Specification
| Category | Antenna |
| Frequency | 704~960MHz; 1710~2690MHz |
| Gain | 6.0dBi @ 704~960MHz; 2.75dBi @ 1710~2690MHz, under a 4ft or 1.22m RG-174 cable |
| V.S.W.R | < 2.7 |
| Band Width | 256MHz at 704~960MHz; 980MHz at 1710~2690MHz |
| Impedance | 50 Ohm |
| Cable/Connector | RG-174, RG-58, LMR-100, LMR-195, LMR-400 or other RF cables |
| Polarization | Linear, Vertical |
| Power Handling Capacity | - |

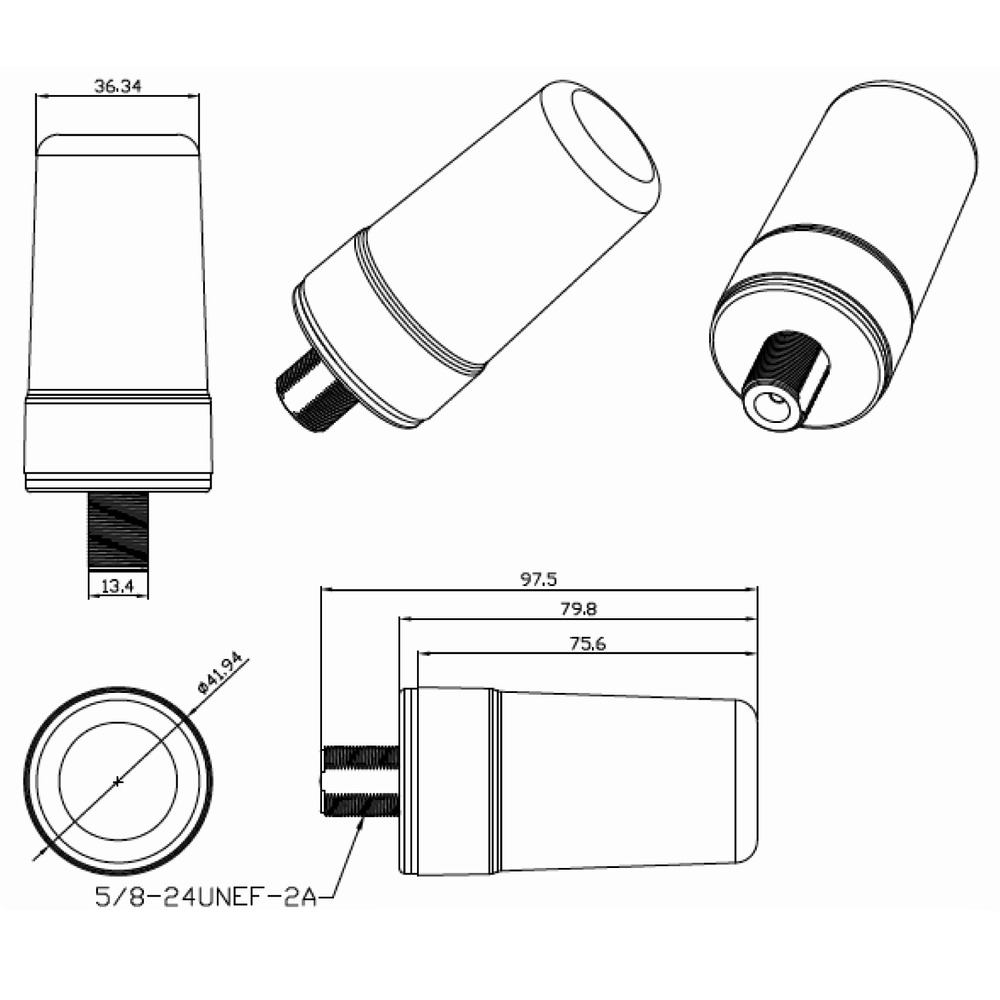

| Dimension | 42mm(Dia.) x 75.6mm(H) |
| Operation Temperature | -40°C to +80°C |
| Storage Temperature |
-40°C to +85°C |
For system developers, we recommend to order and test few samples first before placing a quantity order. The listed price is the sample price.
All customized items are not returnable for refund if the products function as the specifications.
